ARFS - classification#

ARFS can be used for classification (binary or multi-class) and for regression. You just have to specify the right loss function.

[1]:

# from IPython.core.display import display, HTML
# display(HTML("<style>.container { width:95% !important; }</style>"))
import numpy as np
import matplotlib.pyplot as plt
import gc
from sklearn.pipeline import Pipeline
from sklearn.base import clone
from sklearn.ensemble import RandomForestClassifier
from lightgbm import LGBMClassifier
from xgboost import XGBClassifier
from catboost import CatBoostClassifier

import arfs
import arfs.feature_selection.allrelevant as arfsgroot
from arfs.feature_selection import (
    MissingValueThreshold,
    UniqueValuesThreshold,
    CollinearityThreshold,
)
from arfs.utils import LightForestClassifier
from arfs.benchmark import highlight_tick, compare_varimp, sklearn_pimp_bench
from arfs.utils import load_data

plt.style.use("fivethirtyeight")
rng = np.random.RandomState(seed=42)

# import warnings
# warnings.filterwarnings('ignore')

[2]:

print(f"Run with ARFS {arfs.__version__}")

Run with ARFS 3.0.0

[3]:

import importlib

importlib.reload(arfs)

[3]:

<module 'arfs' from '/home/bsatom/Documents/arfs/src/arfs/__init__.py'>

[4]:

gc.enable()
gc.collect()

[4]:

Simple Usage#

In the following examples, I’ll use a classical data set to which I added random predictors (numerical and categorical) and a genuine but noisy artificial predictor (correlated to the target). An All Relveant FS methods should discard them. In the unit tests, you’ll find examples using artifical data with genuine (correlated and non-linear) predictors and with some random/noise columns.

[5]:

# titanic = load_data(name='Titanic')
# X, y = titanic.data, titanic.target

[6]:

titanic = load_data(name="Titanic")
X, y = titanic.data, titanic.target.cat.codes
cat_f = titanic.categorical

Leshy#

[7]:

# Let's use lightgbm as booster, see below for using more models
model = LGBMClassifier(random_state=42, verbose=-1)
# model = CatBoostClassifier(random_state=42, verbose=0)
# model = XGBClassifier(random_state=42, verbosity=0)

with native (impurity/Gini) importance

[8]:

%%time
# Leshy
feat_selector = arfsgroot.Leshy(
    model, n_estimators=20, verbose=1, max_iter=10, random_state=42, importance="native"
)
feat_selector.fit(X_encoded, y, sample_weight=None)
print(f"The selected features: {feat_selector.get_feature_names_out()}")
print(f"The agnostic ranking: {feat_selector.ranking_}")
print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
fig = feat_selector.plot_importance(n_feat_per_inch=5)

# highlight synthetic random variable
fig = highlight_tick(figure=fig, str_match="random")
fig = highlight_tick(figure=fig, str_match="genuine", color="green")
plt.show()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
File <timed exec>:5

NameError: name 'X_encoded' is not defined

with SHAP importance, original implementation

[9]:

%%time
# Leshy
model = clone(model)

feat_selector = arfsgroot.Leshy(
    model, n_estimators=5, verbose=1, max_iter=10, random_state=42, importance="shap"
)
feat_selector.fit(X, y, sample_weight=None)
print(f"The selected features: {feat_selector.get_feature_names_out()}")
print(f"The agnostic ranking: {feat_selector.ranking_}")
print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
fig = feat_selector.plot_importance(n_feat_per_inch=5)

# highlight synthetic random variable
fig = highlight_tick(figure=fig, str_match="random")
fig = highlight_tick(figure=fig, str_match="genuine", color="green")
plt.show()

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:02.08
The selected features: ['pclass' 'sex' 'age' 'fare']
The agnostic ranking: [1 1 2 6 6 6 1 4 1 3]
The naive ranking: ['sex', 'pclass', 'age', 'fare', 'embarked', 'random_num', 'family_size', 'is_alone', 'random_cat', 'title']

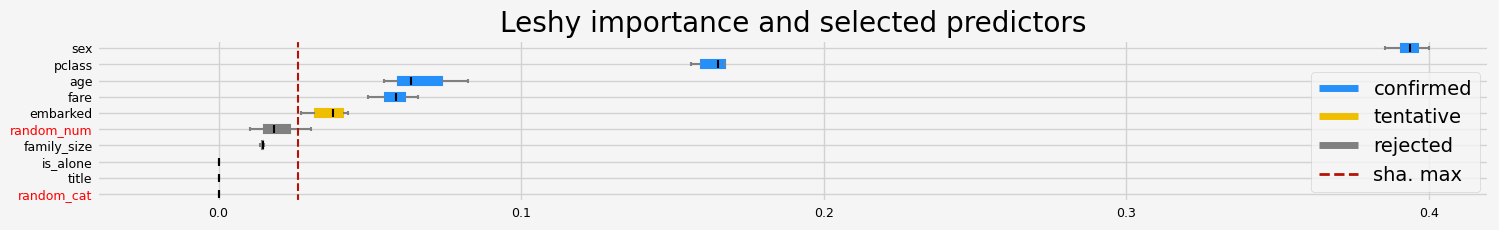

../_images/notebooks_arfs_classification_13_3.png

CPU times: user 2.9 s, sys: 125 ms, total: 3.02 s
Wall time: 2.91 s

the LinkedIn fasttreeshap implementation

[10]:

# %%time
# # Leshy
# model = clone(model)

# feat_selector = arfsgroot.Leshy(
#     model,
#     n_estimators=50,
#     verbose=1,
#     max_iter=10,
#     random_state=42,
#     importance="fastshap",
# )
# feat_selector.fit(X, y, sample_weight=None)
# print(f"The selected features: {feat_selector.get_feature_names_out()}")
# print(f"The agnostic ranking: {feat_selector.ranking_}")
# print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
# fig = feat_selector.plot_importance(n_feat_per_inch=5)

# # highlight synthetic random variable
# fig = highlight_tick(figure=fig, str_match="random")
# fig = highlight_tick(figure=fig, str_match="genuine", color="green")
# plt.show()

with permutation importance

[11]:

%%time
# Leshy
model = clone(model)

feat_selector = arfsgroot.Leshy(
    model, n_estimators=50, verbose=1, max_iter=10, random_state=42, importance="pimp"
)
feat_selector.fit(X, y, sample_weight=None)
print(f"The selected features: {feat_selector.get_feature_names_out()}")
print(f"The agnostic ranking: {feat_selector.ranking_}")
print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
fig = feat_selector.plot_importance(n_feat_per_inch=5)

# highlight synthetic random variable
fig = highlight_tick(figure=fig, str_match="random")
fig = highlight_tick(figure=fig, str_match="genuine", color="green")
plt.show()



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      3
Tentative:      3
Rejected:       4
All relevant predictors selected in 00:00:17.74
The selected features: ['pclass' 'sex' 'age']
The agnostic ranking: [1 1 3 5 4 2 1 2 2 6]
The naive ranking: ['sex', 'pclass', 'age', 'family_size', 'title', 'fare', 'embarked', 'is_alone', 'random_cat', 'random_num']

../_images/notebooks_arfs_classification_17_2.png

CPU times: user 6.4 s, sys: 293 ms, total: 6.7 s
Wall time: 18.4 s

BoostAGroota#

with permutation importance

[12]:

%%time

# be sure to use the same but non-fitted estimator
model = clone(model)
# BoostAGroota
feat_selector = arfsgroot.BoostAGroota(
    estimator=model, cutoff=1, iters=10, max_rounds=10, delta=0.1, importance="pimp"
)
feat_selector.fit(X, y, sample_weight=None)
print(f"The selected features: {feat_selector.get_feature_names_out()}")
print(f"The agnostic ranking: {feat_selector.ranking_}")
print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
fig = feat_selector.plot_importance(n_feat_per_inch=5)

# highlight synthetic random variable
fig = highlight_tick(figure=fig, str_match="random")
fig = highlight_tick(figure=fig, str_match="genuine", color="green")
plt.show()

The selected features: ['pclass' 'sex' 'age' 'family_size']
The agnostic ranking: [2 2 1 1 1 1 2 2 1 1]
The naive ranking: ['sex', 'pclass', 'age', 'family_size', 'fare', 'embarked', 'title', 'random_cat', 'is_alone', 'random_num']

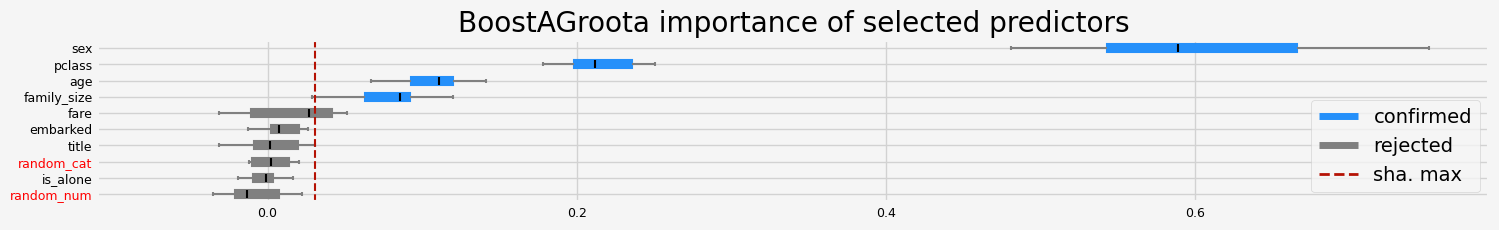

../_images/notebooks_arfs_classification_19_2.png

CPU times: user 11.6 s, sys: 440 ms, total: 12 s
Wall time: 19.7 s

with SHAP importance

[13]:

%%time

# be sure to use the same but non-fitted estimator
model = clone(model)
# BoostAGroota
feat_selector = arfsgroot.BoostAGroota(
    estimator=model, cutoff=1, iters=10, max_rounds=10, delta=0.1, importance="shap"
)
feat_selector.fit(X, y, sample_weight=None)
print(f"The selected features: {feat_selector.get_feature_names_out()}")
print(f"The agnostic ranking: {feat_selector.ranking_}")
print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
fig = feat_selector.plot_importance(n_feat_per_inch=5)

# highlight synthetic random variable
fig = highlight_tick(figure=fig, str_match="random")
fig = highlight_tick(figure=fig, str_match="genuine", color="green")
plt.show()

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

The selected features: ['pclass' 'sex' 'embarked' 'age' 'fare']
The agnostic ranking: [2 2 2 1 1 1 2 1 2 1]
The naive ranking: ['sex', 'pclass', 'fare', 'age', 'embarked', 'family_size', 'random_num', 'random_cat', 'title', 'is_alone']

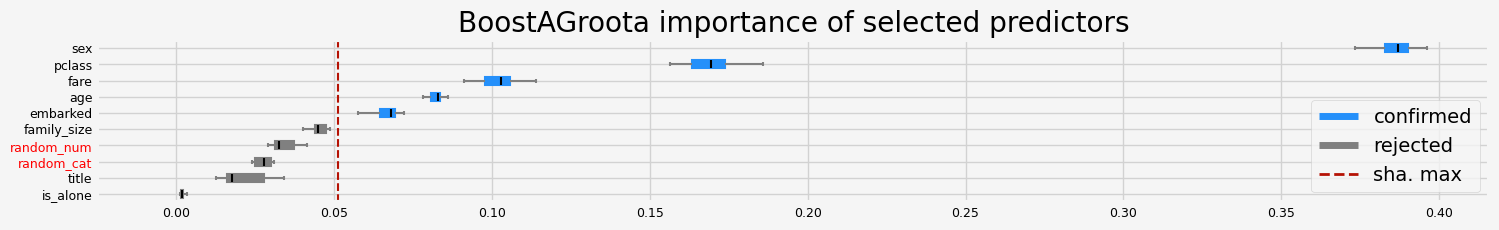

../_images/notebooks_arfs_classification_21_3.png

CPU times: user 12.6 s, sys: 382 ms, total: 13 s
Wall time: 7.25 s

[14]:

# %%time

# # be sure to use the same but non-fitted estimator
# model = clone(model)
# # BoostAGroota
# feat_selector = arfsgroot.BoostAGroota(
#     estimator=model, cutoff=1, iters=10, max_rounds=10, delta=0.1, importance="fastshap"
# )
# feat_selector.fit(X, y, sample_weight=None)
# print(f"The selected features: {feat_selector.get_feature_names_out()}")
# print(f"The agnostic ranking: {feat_selector.ranking_}")
# print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
# fig = feat_selector.plot_importance(n_feat_per_inch=5)

# # highlight synthetic random variable
# fig = highlight_tick(figure=fig, str_match="random")
# fig = highlight_tick(figure=fig, str_match="genuine", color="green")
# plt.show()

GrootCV#

Internally, it uses lightGBM and SHAP importance (fast and accurate)

[15]:

%%time
# GrootCV
feat_selector = arfsgroot.GrootCV(
    objective="binary", cutoff=1, n_folds=5, n_iter=5, silent=True, fastshap=False
)
feat_selector.fit(X, y, sample_weight=None)
print(f"The selected features: {feat_selector.get_feature_names_out()}")
print(f"The agnostic ranking: {feat_selector.ranking_}")
print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
fig = feat_selector.plot_importance(n_feat_per_inch=5)

# highlight synthetic random variable
fig = highlight_tick(figure=fig, str_match="random")
fig = highlight_tick(figure=fig, str_match="genuine", color="green")
plt.show()

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[30]    training's binary_logloss: 0.237856 valid_1's binary_logloss: 0.446382

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[22]    training's binary_logloss: 0.293273 valid_1's binary_logloss: 0.46673

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[25]    training's binary_logloss: 0.27434  valid_1's binary_logloss: 0.412116

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[24]    training's binary_logloss: 0.287409 valid_1's binary_logloss: 0.447397

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[19]    training's binary_logloss: 0.300593 valid_1's binary_logloss: 0.509054
Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[43]    training's binary_logloss: 0.183416 valid_1's binary_logloss: 0.412634

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[20]    training's binary_logloss: 0.305149 valid_1's binary_logloss: 0.463788

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[15]    training's binary_logloss: 0.348592 valid_1's binary_logloss: 0.480086
Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[26]    training's binary_logloss: 0.264479 valid_1's binary_logloss: 0.408829
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[15]    training's binary_logloss: 0.338408 valid_1's binary_logloss: 0.502892
Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[18]    training's binary_logloss: 0.323128 valid_1's binary_logloss: 0.474142
Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[20]    training's binary_logloss: 0.301777 valid_1's binary_logloss: 0.481132

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[22]    training's binary_logloss: 0.290578 valid_1's binary_logloss: 0.439708

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[36]    training's binary_logloss: 0.211251 valid_1's binary_logloss: 0.448651

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[24]    training's binary_logloss: 0.286865 valid_1's binary_logloss: 0.412533

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[20]    training's binary_logloss: 0.300983 valid_1's binary_logloss: 0.471764
Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[21]    training's binary_logloss: 0.303768 valid_1's binary_logloss: 0.428606
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[21]    training's binary_logloss: 0.2863   valid_1's binary_logloss: 0.501341
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[22]    training's binary_logloss: 0.295479 valid_1's binary_logloss: 0.458821
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[21]    training's binary_logloss: 0.305545 valid_1's binary_logloss: 0.42463
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[37]    training's binary_logloss: 0.210036 valid_1's binary_logloss: 0.404107

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[31]    training's binary_logloss: 0.241145 valid_1's binary_logloss: 0.454342

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[37]    training's binary_logloss: 0.207182 valid_1's binary_logloss: 0.441297

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[18]    training's binary_logloss: 0.309431 valid_1's binary_logloss: 0.495712
Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[22]    training's binary_logloss: 0.290437 valid_1's binary_logloss: 0.476951
The selected features: ['pclass' 'sex' 'title' 'age' 'fare']
The agnostic ranking: [2 2 1 1 1 2 2 1 2 1]
The naive ranking: ['ShadowVar10', 'ShadowVar9', 'ShadowVar7', 'ShadowVar4', 'ShadowVar1', 'ShadowVar8', 'ShadowVar6', 'ShadowVar2', 'ShadowVar3', 'ShadowVar5']

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

../_images/notebooks_arfs_classification_24_39.png

CPU times: user 15.5 s, sys: 1.13 s, total: 16.6 s
Wall time: 6.92 s

For larger datasets, the fasttreshap implementation can speed up the feature selection process. However, for smaller datasets, the overhead might slightly slow down the process.

[16]:

# %%time
# # GrootCV
# feat_selector = arfsgroot.GrootCV(
#     objective="binary", cutoff=1, n_folds=5, n_iter=5, silent=True, fastshap=True
# )
# feat_selector.fit(X, y, sample_weight=None)
# print(f"The selected features: {feat_selector.get_feature_names_out()}")
# print(f"The agnostic ranking: {feat_selector.ranking_}")
# print(f"The naive ranking: {feat_selector.ranking_absolutes_}")
# fig = feat_selector.plot_importance(n_feat_per_inch=5)

# # highlight synthetic random variable
# fig = highlight_tick(figure=fig, str_match="random")
# fig = highlight_tick(figure=fig, str_match="genuine", color="green")
# plt.show()

ARFS in sklearn pipelines#

all the selectors (basic, arfs and MRmr) are sklearn compatible and follows the same architecture. Namely, they use the sklearn relevant base classes and therefore have the same methods.

[17]:

model = clone(model)

# # Leshi/Boruta
# feat_selector = arfsgroot.Leshy(model, n_estimators=50, verbose=1, max_iter=10, random_state=42, importance='shap')

# BoostAGroota
feat_selector = arfsgroot.BoostAGroota(
    estimator=model, cutoff=1, iters=10, max_rounds=10, delta=0.1, importance="shap"
)

# GrootCV
# feat_selector = arfsgroot.GrootCV(objective='binary', cutoff=1, n_folds=5, n_iter=5, silent=True)

arfs_fs_pipeline = Pipeline(
    [
        ("missing", MissingValueThreshold(threshold=0.05)),
        ("unique", UniqueValuesThreshold(threshold=1)),
        ("collinearity", CollinearityThreshold(threshold=0.85)),
        ("arfs", feat_selector),
    ]
)

X_trans = arfs_fs_pipeline.fit(X=X, y=y).transform(X=X)

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

[18]:

arfs_fs_pipeline.named_steps["collinearity"].get_feature_names_out()

[18]:

array(['pclass', 'embarked', 'random_cat', 'is_alone', 'title', 'age',
       'family_size', 'fare', 'random_num'], dtype=object)

[19]:

fig = arfs_fs_pipeline.named_steps["arfs"].plot_importance()
# highlight synthetic random variable
fig = highlight_tick(figure=fig, str_match="random")
fig = highlight_tick(figure=fig, str_match="genuine", color="green")
plt.show()

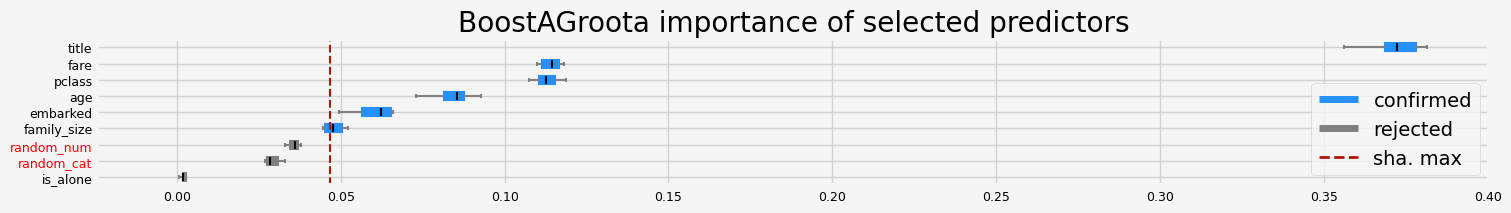

../_images/notebooks_arfs_classification_30_0.png

Testing and comparing Leshy, GrootCV and BoostAGroota#

In the following examples, I’ll use different models which are scikit-learn compatible and then one can compare the different ARFS methods with different models and the different feature importance. For Leshy (Boruta) and BoostAGroota, the native feature importance (gini/impurity) returns the less reliable results.

[20]:

%%time

model = clone(model)
# Benchmark with scikit-learn permutation importance
print("=" * 20 + " Benchmarking using sklearn permutation importance " + "=" * 20)
fig = sklearn_pimp_bench(model, X, y, task="classification", sample_weight=None)

==================== Benchmarking using sklearn permutation importance ====================

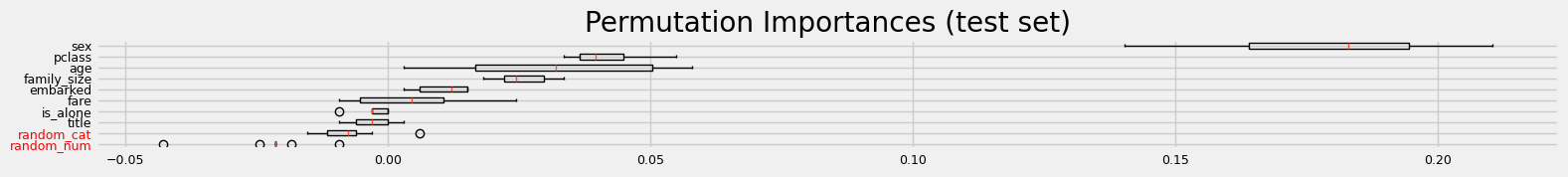

../_images/notebooks_arfs_classification_32_1.png

CPU times: user 972 ms, sys: 317 ms, total: 1.29 s
Wall time: 3.49 s

[21]:

model.__class__.__name__

[21]:

'LGBMClassifier'

Testing Leshy#

[22]:

models = [
# RandomForestClassifier(n_jobs=4, oob_score=False),
CatBoostClassifier(random_state=42, verbose=0),
LGBMClassifier(random_state=42, verbose=-1),
LightForestClassifier(n_feat=X.shape[1]),
XGBClassifier(random_state=42, verbosity=0, eval_metric="logloss"),
]

feat_selector = arfsgroot.Leshy(
model, n_estimators=10, verbose=1, max_iter=10, random_state=42
)

model = LGBMClassifier(random_state=42, verbose=-1)

if __name__ == "__main__":
    # classification
    titanic = load_data(name="Titanic")
    X, y = titanic.data, titanic.target.cat.codes
    cat_f = titanic.categorical
    # running the ARFS methods using different models
    compare_varimp(feat_selector, models, X, y, sample_weight=None)

==================== Leshy - testing:        CatBoostClassifier for var.imp: shap            ====================



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      5
Tentative:      2
Rejected:       3
All relevant predictors selected in 00:00:01.57
['pclass' 'sex' 'age' 'family_size' 'fare']

../_images/notebooks_arfs_classification_35_3.png

==================== Leshy - testing:        CatBoostClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      2
Rejected:       4
All relevant predictors selected in 00:00:07.61
['pclass' 'sex' 'age' 'family_size']

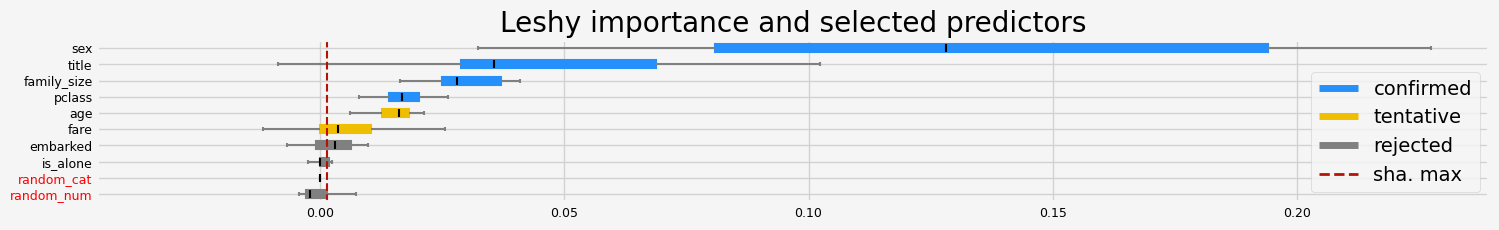

../_images/notebooks_arfs_classification_35_7.png

==================== Leshy - testing:        CatBoostClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      3
Rejected:       3
All relevant predictors selected in 00:00:00.89
['pclass' 'sex' 'title' 'family_size']

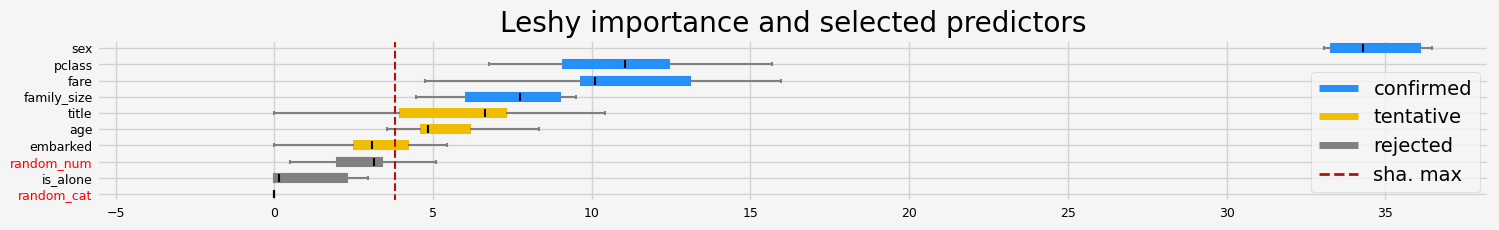

../_images/notebooks_arfs_classification_35_11.png

==================== Leshy - testing:            LGBMClassifier for var.imp: shap            ====================

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:00.91
['pclass' 'sex' 'age' 'fare']

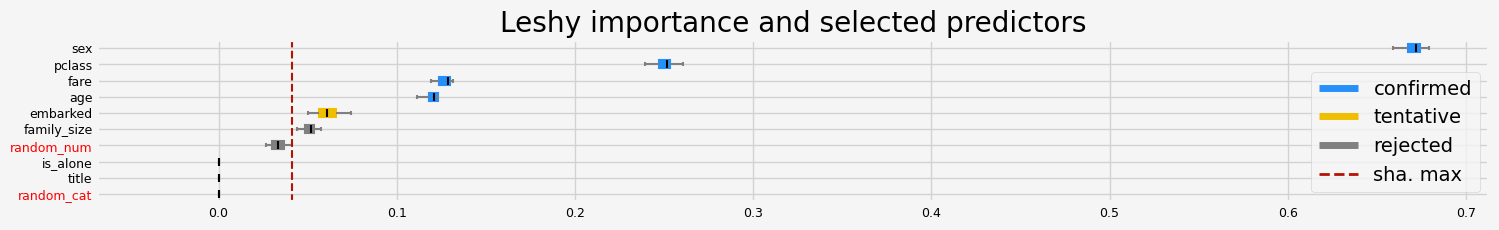

../_images/notebooks_arfs_classification_35_16.png

==================== Leshy - testing:            LGBMClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:05.33
['pclass' 'sex' 'age' 'family_size']

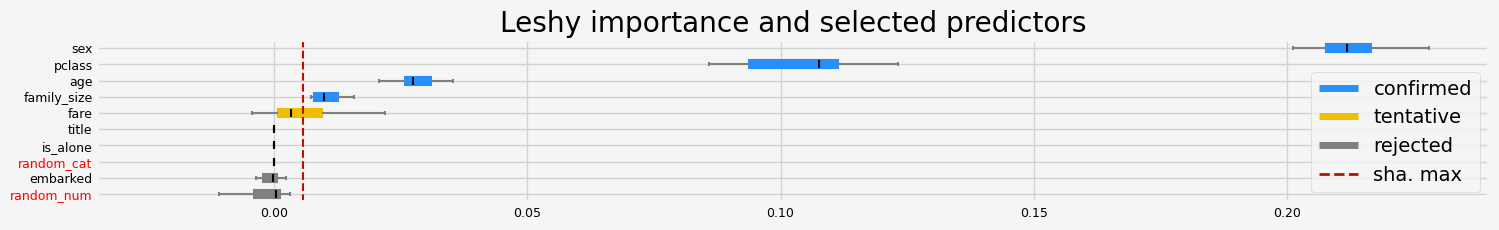

../_images/notebooks_arfs_classification_35_20.png

==================== Leshy - testing:            LGBMClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:00.53
['pclass' 'sex' 'age' 'fare']

../_images/notebooks_arfs_classification_35_24.png

==================== Leshy - testing:            LGBMClassifier for var.imp: shap            ====================

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      1
Tentative:      7
Rejected:       2
All relevant predictors selected in 00:00:00.65
['title']

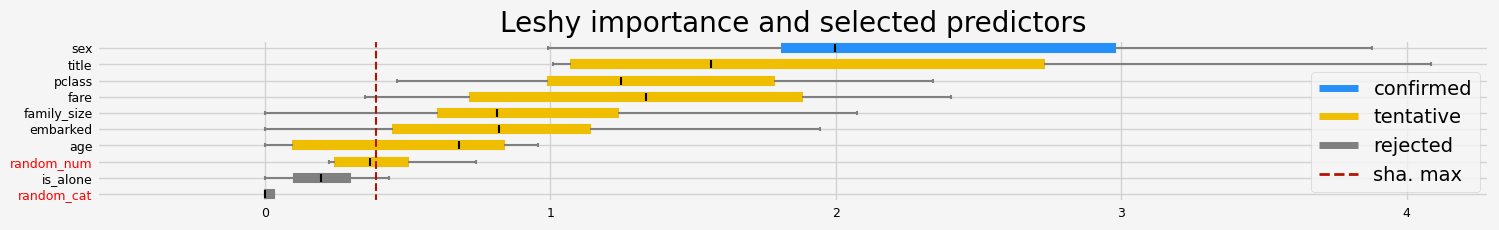

../_images/notebooks_arfs_classification_35_29.png

==================== Leshy - testing:            LGBMClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      1
Tentative:      5
Rejected:       4
All relevant predictors selected in 00:00:05.10
['pclass']

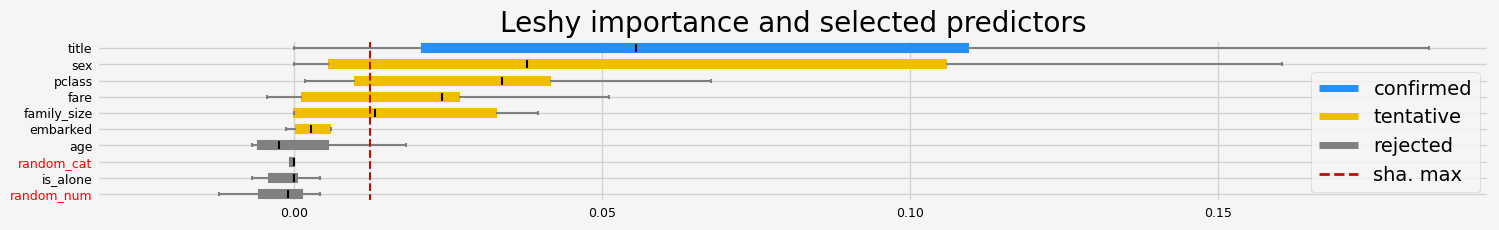

../_images/notebooks_arfs_classification_35_33.png

==================== Leshy - testing:            LGBMClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      1
Tentative:      5
Rejected:       4
All relevant predictors selected in 00:00:00.52
['sex']

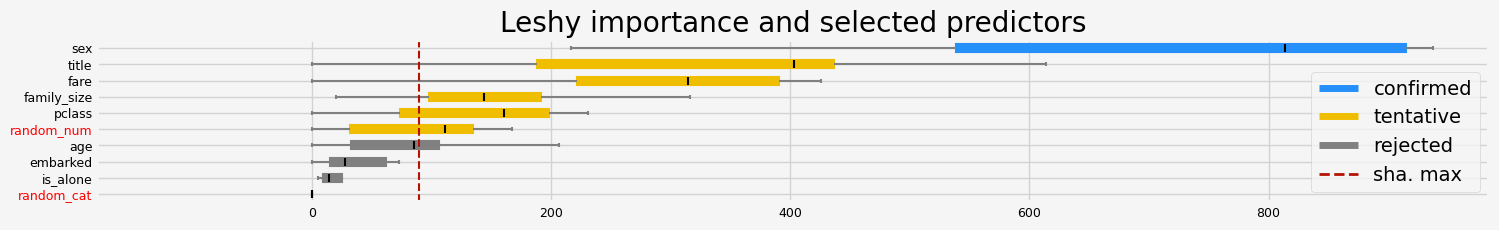

../_images/notebooks_arfs_classification_35_37.png

==================== Leshy - testing:             XGBClassifier for var.imp: shap            ====================



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      5
Tentative:      1
Rejected:       4
All relevant predictors selected in 00:00:01.04
['pclass' 'sex' 'embarked' 'age' 'fare']

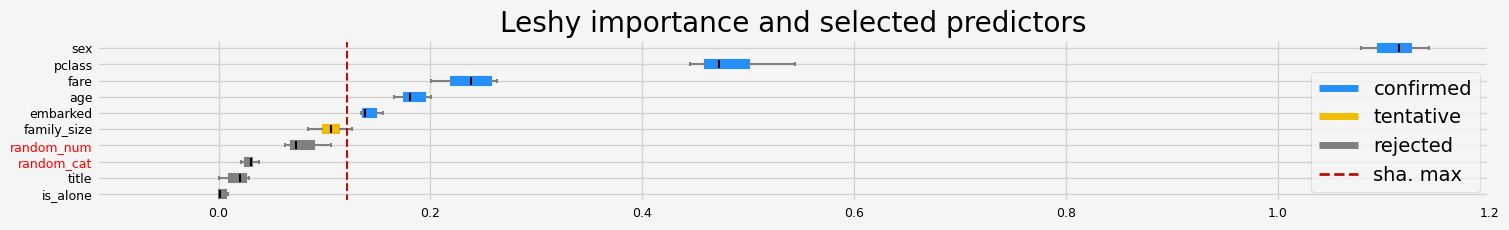

../_images/notebooks_arfs_classification_35_41.png

==================== Leshy - testing:             XGBClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:04.14
['pclass' 'sex' 'age' 'family_size']

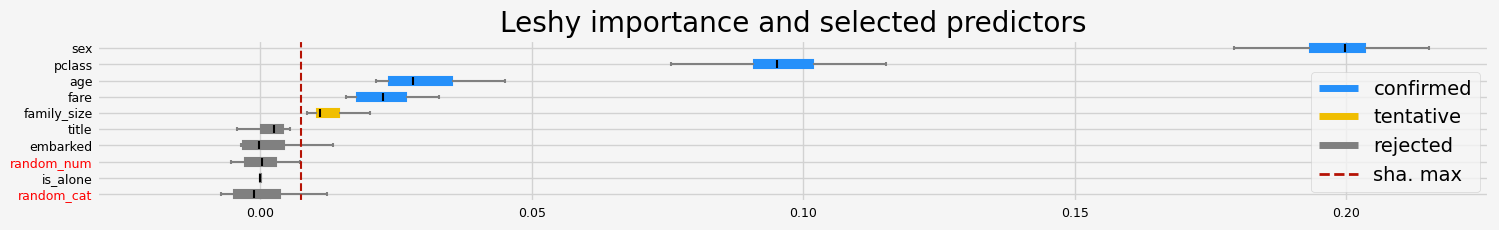

../_images/notebooks_arfs_classification_35_45.png

==================== Leshy - testing:             XGBClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      5
Tentative:      2
Rejected:       3
All relevant predictors selected in 00:00:00.69
['pclass' 'sex' 'embarked' 'title' 'family_size']

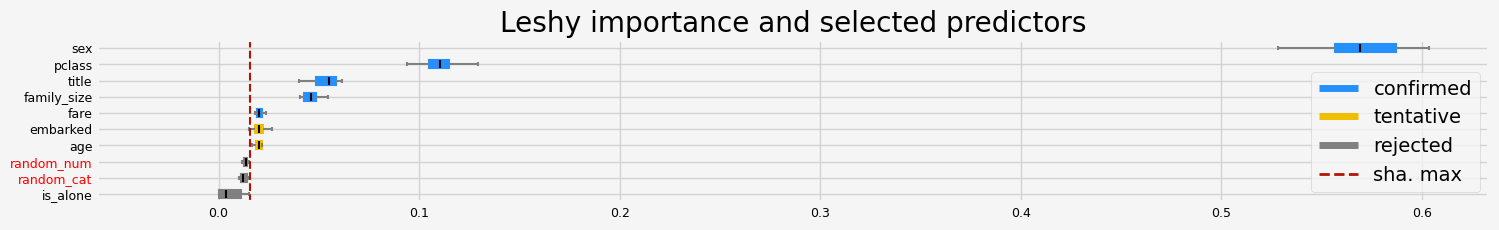

../_images/notebooks_arfs_classification_35_49.png

[23]:

models = [
    RandomForestClassifier(n_jobs=4, oob_score=True),
    CatBoostClassifier(random_state=42, verbose=0),
    LGBMClassifier(random_state=42, verbose=-1),
    LightForestClassifier(n_feat=X.shape[1]),
    XGBClassifier(random_state=42, verbosity=0, eval_metric="logloss"),
]

feat_selector = arfsgroot.Leshy(
    model, n_estimators=100, verbose=1, max_iter=10, random_state=42
)

if __name__ == "__main__":
    # classification
    titanic = load_data(name="Titanic")
    X, y = titanic.data, titanic.target.cat.codes
    cat_f = titanic.categorical
    # running the ARFS methods using different models
    compare_varimp(feat_selector, models, X, y, sample_weight=None)

==================== Leshy - testing:    RandomForestClassifier for var.imp: shap            ====================



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      7
Tentative:      1
Rejected:       2
All relevant predictors selected in 00:00:34.85
['pclass' 'sex' 'embarked' 'title' 'age' 'family_size' 'fare']

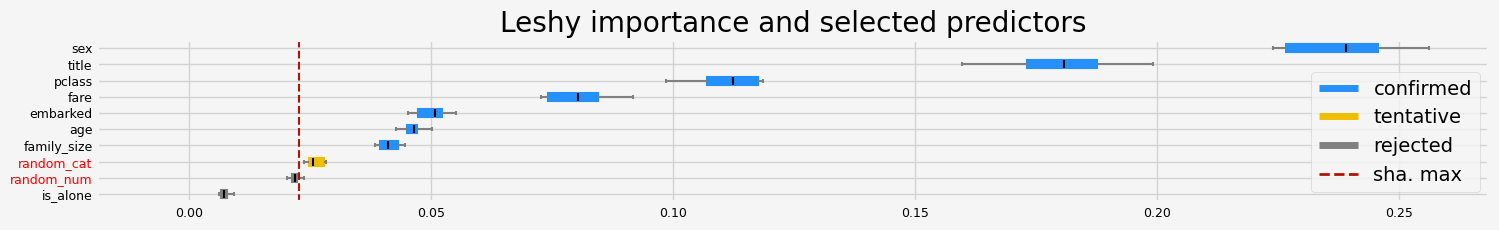

../_images/notebooks_arfs_classification_36_3.png

==================== Leshy - testing:    RandomForestClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:24.62
['pclass' 'sex' 'title' 'family_size']

../_images/notebooks_arfs_classification_36_7.png

==================== Leshy - testing:    RandomForestClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:05.33
['sex' 'title' 'age' 'fare']

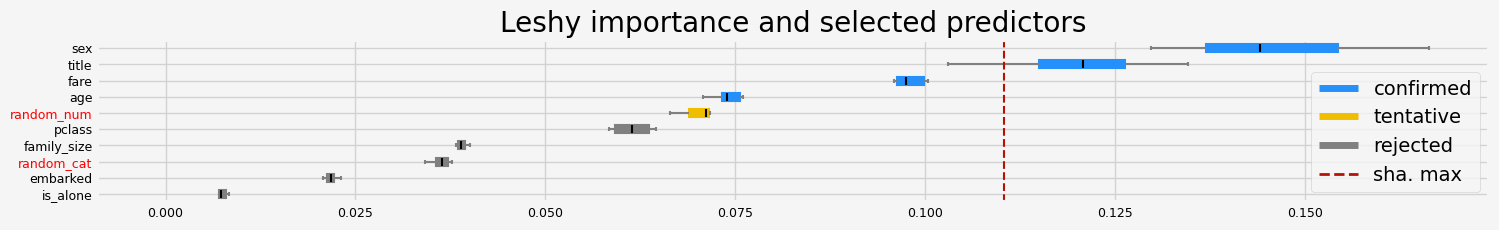

../_images/notebooks_arfs_classification_36_11.png

==================== Leshy - testing:        CatBoostClassifier for var.imp: shap            ====================



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      7
Tentative:      0
Rejected:       3
All relevant predictors selected in 00:00:05.59
['pclass' 'sex' 'embarked' 'title' 'age' 'family_size' 'fare']

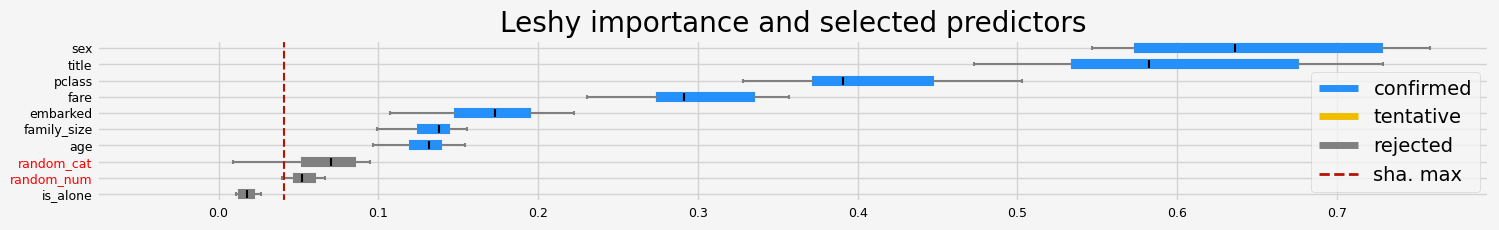

../_images/notebooks_arfs_classification_36_15.png

==================== Leshy - testing:        CatBoostClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      0
Rejected:       6
All relevant predictors selected in 00:00:07.07
['pclass' 'sex' 'title' 'family_size']

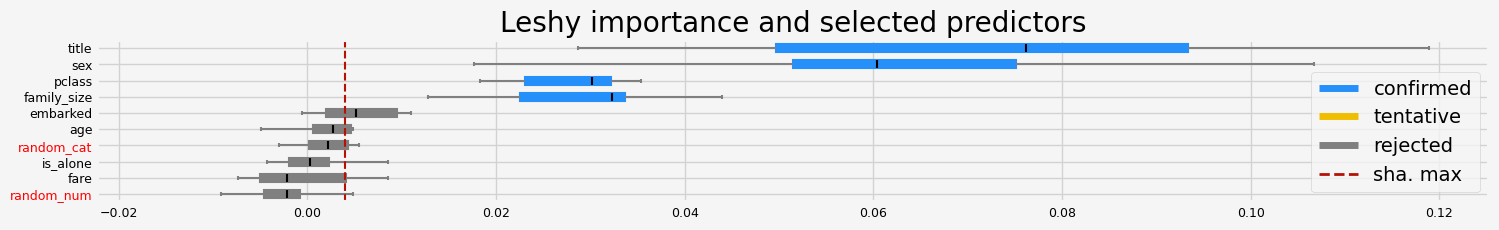

../_images/notebooks_arfs_classification_36_19.png

==================== Leshy - testing:        CatBoostClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      2
Rejected:       4
All relevant predictors selected in 00:00:04.52
['pclass' 'sex' 'title' 'fare']

../_images/notebooks_arfs_classification_36_23.png

==================== Leshy - testing:            LGBMClassifier for var.imp: shap            ====================

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      2
Rejected:       4
All relevant predictors selected in 00:00:03.82
['pclass' 'sex' 'age' 'fare']

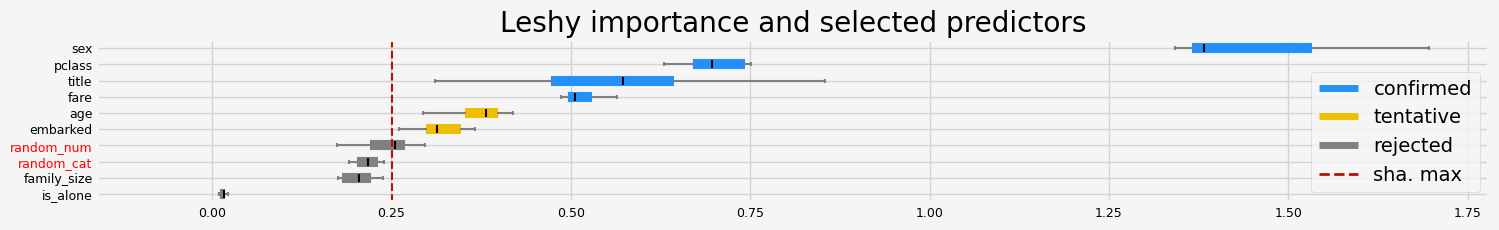

../_images/notebooks_arfs_classification_36_28.png

==================== Leshy - testing:            LGBMClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      3
Tentative:      3
Rejected:       4
All relevant predictors selected in 00:00:08.46
['pclass' 'sex' 'family_size']

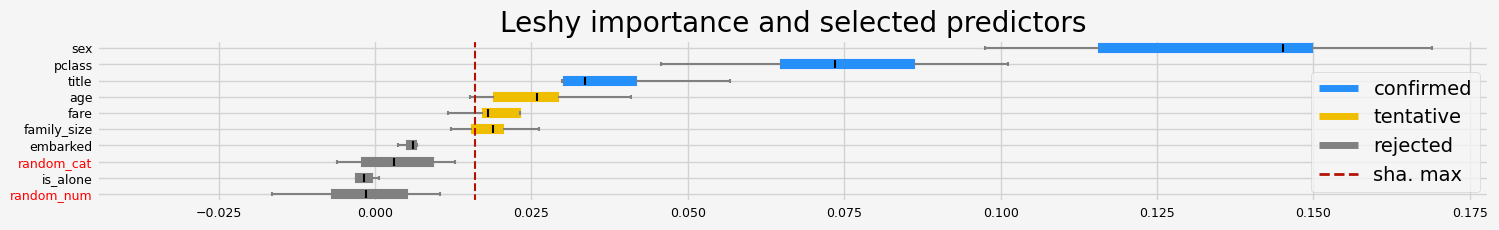

../_images/notebooks_arfs_classification_36_32.png

==================== Leshy - testing:            LGBMClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      2
Tentative:      2
Rejected:       6
All relevant predictors selected in 00:00:01.54
['sex' 'fare']

../_images/notebooks_arfs_classification_36_36.png

==================== Leshy - testing:            LGBMClassifier for var.imp: shap            ====================

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      5
Tentative:      2
Rejected:       3
All relevant predictors selected in 00:00:02.11
['pclass' 'sex' 'embarked' 'title' 'fare']

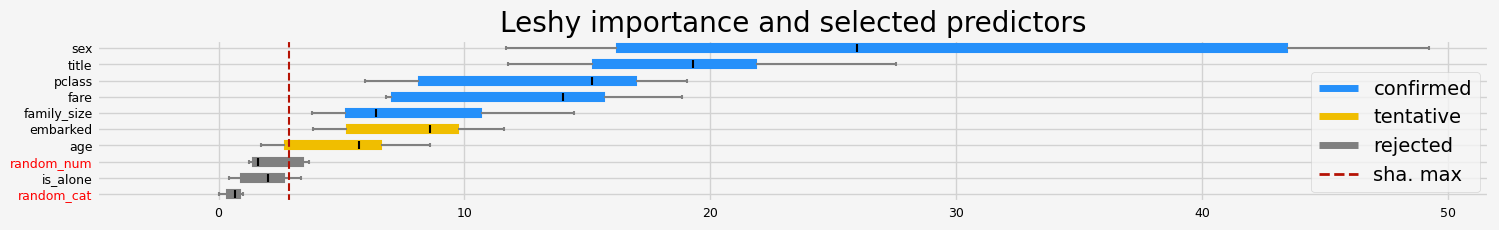

../_images/notebooks_arfs_classification_36_41.png

==================== Leshy - testing:            LGBMClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      2
Tentative:      3
Rejected:       5
All relevant predictors selected in 00:00:07.89
['sex' 'title']

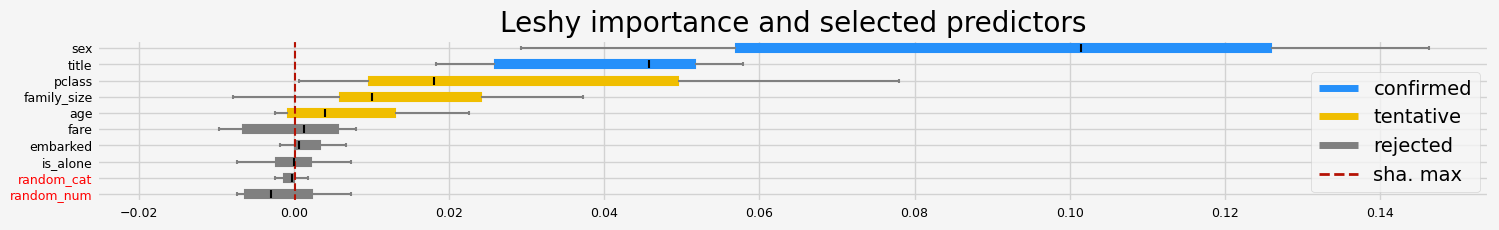

../_images/notebooks_arfs_classification_36_45.png

==================== Leshy - testing:            LGBMClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:01.64
['pclass' 'sex' 'title' 'fare']

../_images/notebooks_arfs_classification_36_49.png

==================== Leshy - testing:             XGBClassifier for var.imp: shap            ====================



Leshy finished running using shap var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      1
Rejected:       5
All relevant predictors selected in 00:00:03.21
['pclass' 'sex' 'age' 'fare']

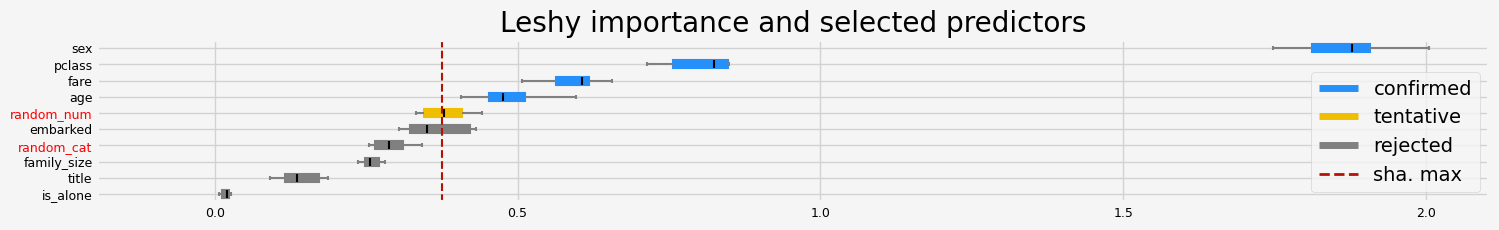

../_images/notebooks_arfs_classification_36_53.png

==================== Leshy - testing:             XGBClassifier for var.imp: pimp            ====================



Leshy finished running using pimp var. imp.

Iteration:      1 / 10
Confirmed:      4
Tentative:      2
Rejected:       4
All relevant predictors selected in 00:00:08.42
['pclass' 'sex' 'age' 'family_size']

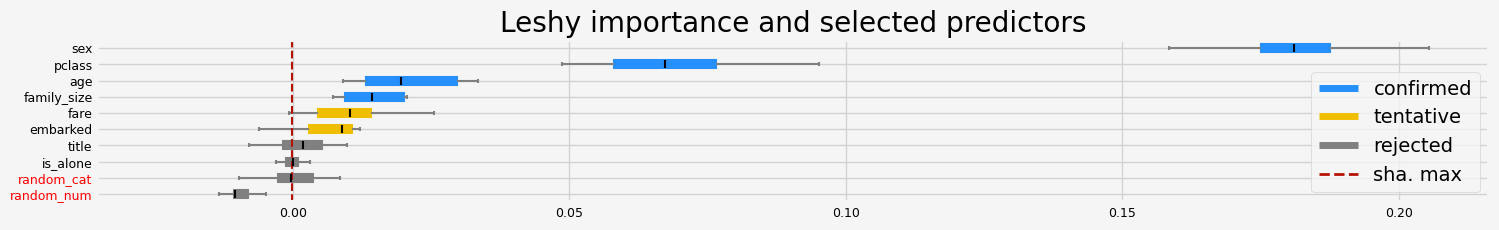

../_images/notebooks_arfs_classification_36_57.png

==================== Leshy - testing:             XGBClassifier for var.imp: native          ====================



Leshy finished running using native var. imp.

Iteration:      1 / 10
Confirmed:      5
Tentative:      2
Rejected:       3
All relevant predictors selected in 00:00:02.00
['pclass' 'sex' 'title' 'family_size' 'fare']

../_images/notebooks_arfs_classification_36_61.png

[25]:

# from sklearn.datasets import make_classification
# from xgboost import XGBClassifier
# from fasttreeshap import TreeExplainer as FastTreeExplainer

# X, y = make_classification(
#     n_samples=1000, n_features=10, n_informative=8, random_state=8
# )
# model = XGBClassifier()
# model.fit(X, y)
# explainer = FastTreeExplainer(
#     model, algorithm="auto", shortcut=False, feature_perturbation="tree_path_dependent"
# )
# shap_matrix = explainer.shap_values(X)

the fasttreeshap implementation doesn’t work correctly with xgboost, I created an issue

Testing GrootCV#

[26]:

# Testing the changes with rnd cat. and num. predictors added to the set of genuine predictors
def testing_estimators(X, y, sample_weight=None, objective="binary"):
    feat_selector = arfsgroot.GrootCV(
        objective=objective, cutoff=1, n_folds=5, n_iter=5
    )
    feat_selector.fit(X, y, sample_weight)
    print(feat_selector.get_feature_names_out())
    fig = feat_selector.plot_importance(n_feat_per_inch=5)

    # highlight synthetic random variable
    fig = highlight_tick(figure=fig, str_match="random")
    plt.show()
    gc.enable()
    del feat_selector
    gc.collect()


if __name__ == "__main__":
    # classification
    titanic = load_data(name="Titanic")
    X, y = titanic.data, titanic.target
    y = y.astype(int)
    cat_f = titanic.categorical
    testing_estimators(X=X, y=y, objective="binary")

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[27]    training's binary_logloss: 0.262951 valid_1's binary_logloss: 0.420557
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[17]    training's binary_logloss: 0.320217 valid_1's binary_logloss: 0.474871
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[30]    training's binary_logloss: 0.242613 valid_1's binary_logloss: 0.384465

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[22]    training's binary_logloss: 0.293701 valid_1's binary_logloss: 0.427967
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[20]    training's binary_logloss: 0.295521 valid_1's binary_logloss: 0.518225
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[26]    training's binary_logloss: 0.277771 valid_1's binary_logloss: 0.418831

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[22]    training's binary_logloss: 0.29269  valid_1's binary_logloss: 0.447969

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[16]    training's binary_logloss: 0.333104 valid_1's binary_logloss: 0.48861

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[41]    training's binary_logloss: 0.192096 valid_1's binary_logloss: 0.359015

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[19]    training's binary_logloss: 0.301622 valid_1's binary_logloss: 0.504762

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[31]    training's binary_logloss: 0.225072 valid_1's binary_logloss: 0.461113

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[39]    training's binary_logloss: 0.192027 valid_1's binary_logloss: 0.465366

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[22]    training's binary_logloss: 0.284188 valid_1's binary_logloss: 0.461567

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[44]    training's binary_logloss: 0.179354 valid_1's binary_logloss: 0.421156

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[24]    training's binary_logloss: 0.280802 valid_1's binary_logloss: 0.418434

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[28]    training's binary_logloss: 0.262687 valid_1's binary_logloss: 0.440175

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[22]    training's binary_logloss: 0.295969 valid_1's binary_logloss: 0.409384

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[30]    training's binary_logloss: 0.228744 valid_1's binary_logloss: 0.445173

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[23]    training's binary_logloss: 0.281642 valid_1's binary_logloss: 0.46191

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[25]    training's binary_logloss: 0.269771 valid_1's binary_logloss: 0.448045
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[22]    training's binary_logloss: 0.301905 valid_1's binary_logloss: 0.409273
Training until validation scores don't improve for 20 rounds

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Early stopping, best iteration is:
[25]    training's binary_logloss: 0.26923  valid_1's binary_logloss: 0.444088

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[39]    training's binary_logloss: 0.187609 valid_1's binary_logloss: 0.460375

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[20]    training's binary_logloss: 0.292804 valid_1's binary_logloss: 0.479404

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

Training until validation scores don't improve for 20 rounds
Early stopping, best iteration is:
[21]    training's binary_logloss: 0.295055 valid_1's binary_logloss: 0.493018
['pclass' 'sex' 'title' 'age' 'fare']

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

../_images/notebooks_arfs_classification_40_51.png

This confirms that the native (gini/gain) feature importance are biased and not the best to assess the real feature importance.

Testing BoostAGroota#

[27]:

models = [
    RandomForestClassifier(n_jobs=4, oob_score=True),
    CatBoostClassifier(random_state=42, verbose=0),
    LGBMClassifier(random_state=42, verbose=-1),
    LightForestClassifier(n_feat=X.shape[1]),
    XGBClassifier(random_state=42, verbosity=0),
]

feat_selector = arfsgroot.BoostAGroota(
    estimator=model, cutoff=1.25, iters=10, max_rounds=10, delta=0.1
)

if __name__ == "__main__":
    # classification
    titanic = load_data(name="Titanic")
    X, y = titanic.data, titanic.target
    y = y.astype(int)
    cat_f = titanic.categorical
    # running the ARFS methods using different models
    compare_varimp(feat_selector, models, X, y, sample_weight=None)

==================== BoostAGroota - testing:    RandomForestClassifier for var.imp: shap            ====================

['pclass' 'sex' 'embarked' 'random_cat' 'title' 'age' 'family_size' 'fare'
 'random_num']

../_images/notebooks_arfs_classification_43_3.png

==================== BoostAGroota - testing:    RandomForestClassifier for var.imp: pimp            ====================

['pclass' 'sex' 'title' 'age' 'family_size']

../_images/notebooks_arfs_classification_43_7.png

==================== BoostAGroota - testing:    RandomForestClassifier for var.imp: native          ====================

['pclass' 'sex' 'random_cat' 'title' 'age' 'family_size' 'fare'
 'random_num']

../_images/notebooks_arfs_classification_43_11.png

==================== BoostAGroota - testing:        CatBoostClassifier for var.imp: shap            ====================

['pclass' 'sex' 'embarked' 'title' 'age' 'family_size' 'fare']

../_images/notebooks_arfs_classification_43_15.png

==================== BoostAGroota - testing:        CatBoostClassifier for var.imp: pimp            ====================

['pclass' 'sex' 'title' 'age' 'family_size']

../_images/notebooks_arfs_classification_43_19.png

==================== BoostAGroota - testing:        CatBoostClassifier for var.imp: native          ====================

['pclass' 'sex' 'random_cat' 'title' 'age' 'family_size' 'fare'
 'random_num']

../_images/notebooks_arfs_classification_43_23.png

==================== BoostAGroota - testing:            LGBMClassifier for var.imp: shap            ====================

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

['pclass' 'sex' 'embarked' 'age' 'family_size' 'fare' 'random_num']

../_images/notebooks_arfs_classification_43_28.png

==================== BoostAGroota - testing:            LGBMClassifier for var.imp: pimp            ====================

['pclass' 'sex' 'age' 'family_size' 'fare']

../_images/notebooks_arfs_classification_43_32.png

==================== BoostAGroota - testing:            LGBMClassifier for var.imp: native          ====================

['pclass' 'sex' 'age' 'fare' 'random_num']

../_images/notebooks_arfs_classification_43_36.png

==================== BoostAGroota - testing:            LGBMClassifier for var.imp: shap            ====================

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(

['pclass' 'sex' 'embarked' 'title' 'family_size' 'fare']

../_images/notebooks_arfs_classification_43_41.png

==================== BoostAGroota - testing:            LGBMClassifier for var.imp: pimp            ====================

['pclass' 'sex' 'title' 'fare']

../_images/notebooks_arfs_classification_43_45.png

==================== BoostAGroota - testing:            LGBMClassifier for var.imp: native          ====================

['pclass' 'sex' 'title' 'fare']

../_images/notebooks_arfs_classification_43_49.png

==================== BoostAGroota - testing:             XGBClassifier for var.imp: shap            ====================

['pclass' 'sex' 'embarked' 'age' 'fare' 'random_num']

../_images/notebooks_arfs_classification_43_53.png

==================== BoostAGroota - testing:             XGBClassifier for var.imp: pimp            ====================

['pclass' 'sex' 'embarked' 'age' 'family_size' 'fare']

../_images/notebooks_arfs_classification_43_57.png

==================== BoostAGroota - testing:             XGBClassifier for var.imp: native          ====================

['pclass' 'sex' 'embarked' 'random_cat' 'title' 'age' 'family_size' 'fare']

../_images/notebooks_arfs_classification_43_61.png

comparing to BorutaShap#

BorutaShap is (partly) broken, has some dependencies conflicts

[28]:

# from BorutaShap import BorutaShap
# from arfs.preprocessing import OrdinalEncoderPandas

# model = LGBMClassifier(random_state=42, verbose=-1, n_estimators=10)
# X_encoded = OrdinalEncoderPandas().fit_transform(X=X)
# Feature_Selector = BorutaShap(
#     model=model, importance_measure="shap", classification=True
# )

# Feature_Selector.fit(X=X_encoded, y=y, n_trials=100, random_state=0)

# # Returns Boxplot of features
# Feature_Selector.plot(X_size=12, figsize=(8, 6), y_scale="log", which_features="all")

[29]:

# Leshy
from arfs.preprocessing import OrdinalEncoderPandas

model = LGBMClassifier(random_state=42, verbose=-1, n_estimators=10)
X_encoded = OrdinalEncoderPandas().fit_transform(X=X)
feat_selector = arfsgroot.Leshy(
    model, n_estimators=10, verbose=1, max_iter=100, random_state=42, importance="shap"
)
feat_selector.fit(X_encoded, y, sample_weight=None)
print(feat_selector.get_feature_names_out())
fig = feat_selector.plot_importance(n_feat_per_inch=5)

# highlight synthetic random variable
fig = highlight_tick(figure=fig, str_match="random")
fig = highlight_tick(figure=fig, str_match="genuine", color="green")
plt.show()

/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(
/home/bsatom/Documents/arfs_test_nbs/arfsuv/lib/python3.12/site-packages/shap/explainers/_tree.py:544: UserWarning: LightGBM binary classifier with TreeExplainer shap values output has changed to a list of ndarray
  warnings.warn(



Leshy finished running using shap var. imp.

Iteration:      1 / 100
Confirmed:      5
Tentative:      1
Rejected:       4
All relevant predictors selected in 00:00:04.97
['pclass' 'sex' 'embarked' 'age' 'fare']

../_images/notebooks_arfs_classification_46_3.png
